Hobart® M-802

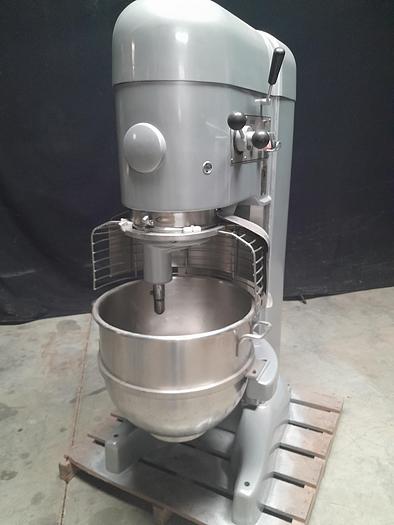

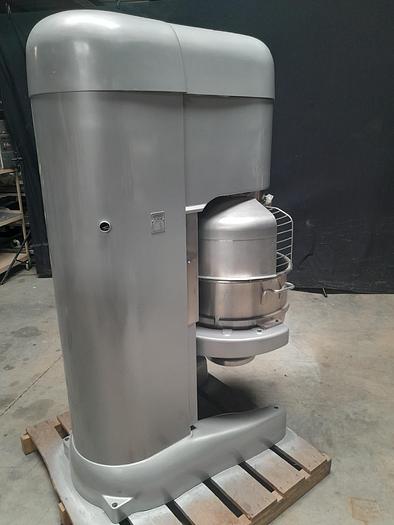

RECONDITIONED - HOBART M-802; 80QT MIXER

ST. ST. BOWL

BOWL GARD

200Volt / 3Phase

3Hp

60Hz

10.5Amps

RECONDITION STANDARDS

32 POINT RECONDITIONING PROCEEDURE: Inspect & replace if out of specifications.

TOP:

• Clutch
• Bowl Lift Gear Box
• Belts
• Tensioner Belt
• Oil Gear Box

Planetary:

• Oil Planetary
• Planetary Shaft
• Planetary Seal
• Planetary Pin

Internal Gearbox:

• Gears
• Shafts
• Keys
• Bearings

Bowl Arms:

• Apex Shaft
• Apex Nut
• Thrust Bearings
• Bowl Locks

Electrical Inspection:

• Motor
• Start/Stop
• Bowl Safety Gard Magnet System
• Proximity Sensor
• Bowl Gard Slides
• Bowl Lift Limit Switch
• Magnetic Contactor
• Electric Timer

Body:

• Bowl Lift Handle
• Clutch Handel
• Brake Mechanism
• Gear Selector
• Sand, Primer & Paint
• Bolt Holes Clean & clear for Bolt Down

Optional:

• Crating or Skid
• Delivery & Haul-off Service.
